Takes (almost) all signal types (Voltage, Current, Frequency, Pulse counter, PT100, PT1000, Thermocouple)
A measured value high up in the “cloud” increases the global – but not always the local – visibility of information. For this purpose, the new multifunction display with a universal measurement input is the right choice in almost all applications.
It can detect and convert analogue standard signals, pulses, frequencies and temperature sensors and display the measured value in the required unit directly on site.

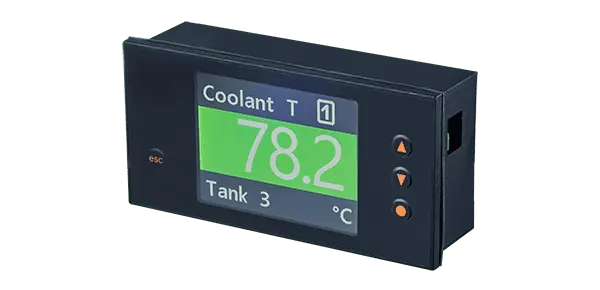

Clear representation

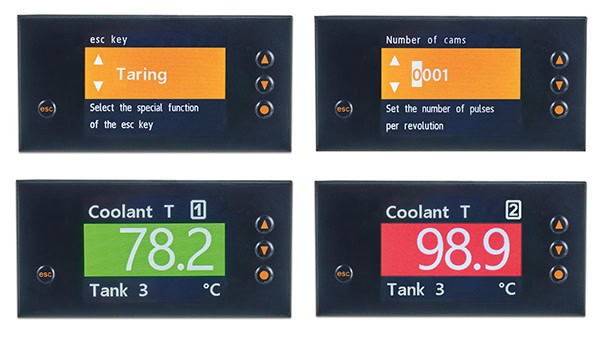

The TFT display offers various possibilities and colours to visualise the measured value. The unit of measurement also displayed, the signal name and the location tag clearly explain the meaning of the displayed value.
The different font and background colours of the definable alarms help to evaluate the measured value. Via the two relay outputs, individual alarms can be transferred to higher-level systems, or simple controls can be realised.
The all-rounder among the displays
- Universal measurement input for various types of signals (current, voltage, frequency, pulses, PT100/PT1000 and thermocouples)
- Colour TFT display with extensive digital labelling
- Intuitive menu structure with help texts for easy parameter setting
- 8 adjustable alarms and 2 relay outputs
- Low installation depth with standard panel cut-out
| Technical data DX1063 | |
| Inputs:
Voltage [V] Current [mA] Frequency [kHz] Pulse counter PT100, PT1000, depending on the sensor [°C] Thermocouple, depending on the sensor [°C] |
0…10 0…20 up to 10 up to 9999 -200…850 -270…1820 |
| Switch points / alarms 8 | Outputs 2x relay 2 A (30 V DC) |
| Protection rating | IP65 |
