Integrate temperature probes (Pt100 or Pt1000 or Type J or Type K thermocouples) directly into IO-Link.
Digitisation of Pt100 or Pt1000 or Type J or Type K thermocouples to IO-Link.
IO-Link has become established as an intelligent interface for integrating smart sensors and devices in various industries. Nevertheless, conventional temperature probes (Pt100 / Pt1000 elements or thermocouples) are still widely used in many machines and systems, which must be connected to the central controller. With the new IO-Link measuring modules, up to four temperature probes can be connected to an IO-Link master port in 2-, 3- or 4-wire configuration. The port configuration and wiring config can be customised using the IO-Link parameter settings.
Adjustment of the measured value
Especially when measuring temperature with thermocouple elements, the metals used in the cables and contacts have a considerable influence on the measured value. The measured value can therefore be adjusted to the measuring line used with the “Cold junction offset” and “Temperature zero-point calibration” parameters.
To cover the large number range with high resolution, the measured value is displayed as a “floating point number” in the process data.
Product benefits
4 ports for the direct connection of temperature probes
Up to 4 Pt100, Pt1000 probes or type J or type K thermocouples can be connected to the module via standard M12 connectors.
Detection of even the smallest variation in temperature
Temperature changes as small as 0.01 °C can be precisely detected thanks to the accurate internal resolution.
High accuracy
An accuracy of 0.3 % is achieved over the entire measuring range.
Robust design
High-quality materials are used to achieve the high protection ratings of IP67 (orange housing) and IP69K (grey housing).
Applications

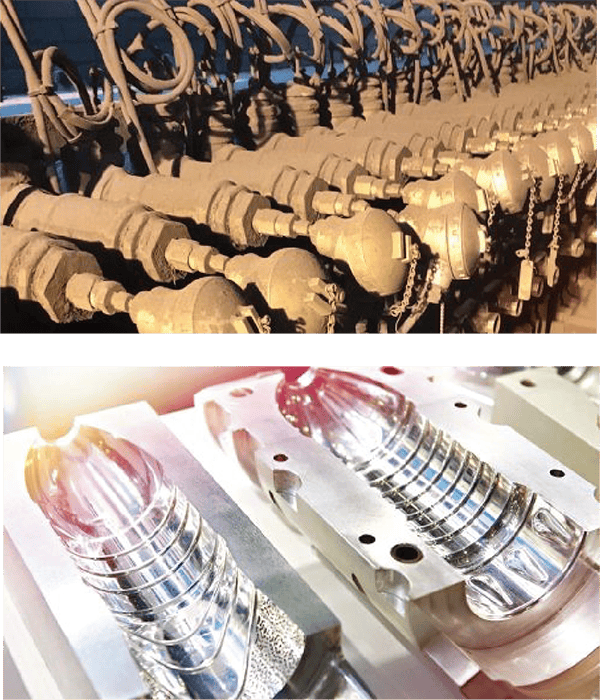

Temperature monitoring in mining
In mining, the digitised measured temperature values can be transmitted precisely and without loss even over long distances thanks to IO-Link. There is also no need to wire each sensor to the control cabinet, as the robust IO-Link module is mounted directly in the field.
Temperature measurement in thermoplastic deformation
When manufacturing large plastic parts by thermoplastic deformation, plastic plates are heated and pressed onto a mould contour in a press. During the heating and moulding stage, several temperature sensors are used to precisely monitor and control the temperature in the tool. Temperature probes detect even the smallest temperature trends thanks to an impressive resolution of 0.01 °C. The production process is similar in the manufacture of composite materials, such as those used in car door trims or dashboards.
