Optris CSvision for robust real-time process monitoring ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย
INSTROTECH, the local representative of Optris, has launched the CSvision series of ratio pyrometers, with a range from 300 ยฐC to 3000 ยฐC, it is possible to measure the temperature of metals, melts or ceramics non-contact, safely and reliably from different distances.
Infrared pyrometers must meet high demands, especially in metallurgy, where they are often used under harsh conditions and must deliver reliable results at any time. Smoke, steam, or dust often impede a clear view of the measured object and affect the measurement signal. In these conditions, ratio pyrometers provide stable measured values – compared to single-channel pyrometers, even with dirty optics or objects that move within the measuring field, such as metal rods or wires. The new ย CSvision is equipped with the innovative Smart Ratio Mode (SRM) and can thus master even challenging applications with variable emissivity ratios. The built-in video sight and the motorised focus, which can be operated via software or app, allow the CSvision novelties to be focused very conveniently on the respective object. The switchable two-stage brightness reduction filter ensures optimum viewing conditions even with very hot, bright objects. Together with the crosshair laser, which is also standard, this ensures simple sensor alignment under all conditions.
Two infrared pyrometers for precision-fit applications
The ย CSvision R1M offers an optical resolution of up to 150:1 and a measuring range of 600 to 3000 ยฐC with a spectral range of 0.8 to 1.1 ฮผm – in harsh industrial environments up to 65 ยฐC without cooling. The R2M has an optical resolution of 75:1 and a spectral range of 1.45 to 1.75 ฮผm. This allows temperatures to be measured from as low as 300 ยฐC to 1400 ยฐC (up to 60 ยฐC without cooling).
Easy sensor setup and monitoring via app

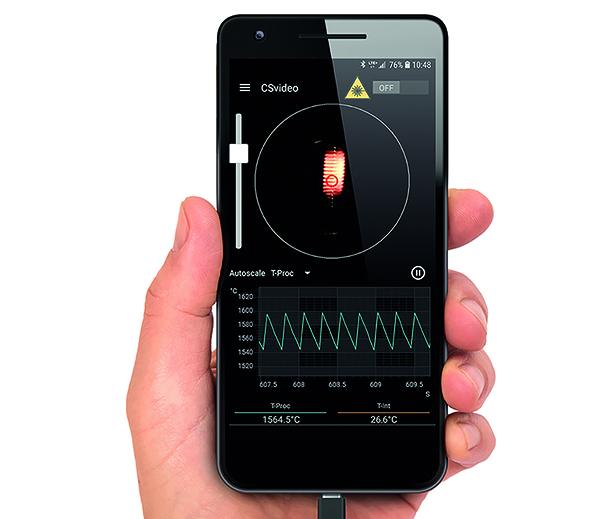

Optris creates an easy-to-use solution with the ย CSvision series that can be set up quickly and easily. The infrared thermometers have an interface to the IRmobile Android app and CompactPlus Connect software, allowing for easy video alignment and real-time process monitoring. Two analogue outputs are available for process integration and digital interfaces, such as RS485 or Modbus RTU.
A variably programmable I/O pin can be used as an alarm output for signal triggering or external emissivity/slope settings.
Contact INSTROTECH for more on Optris CSvision Ratio Pyrometer on 010 595 1831, sales@instrotech.co.za or www.instrotech.co.za
