Vibration in rotating machinery is merely the back and forth movement or oscillation of a machine and components, such as drive motors, driven devices (pumps, compressors, etc.), and the bearings, shafts, gears, belts and other elements that make up mechanical systems.
Vibration itself is not a problem. Excess vibration is simply a symptom of internal issues, such as bearing failures, imbalance, misalignment and looseness, that shorten equipment

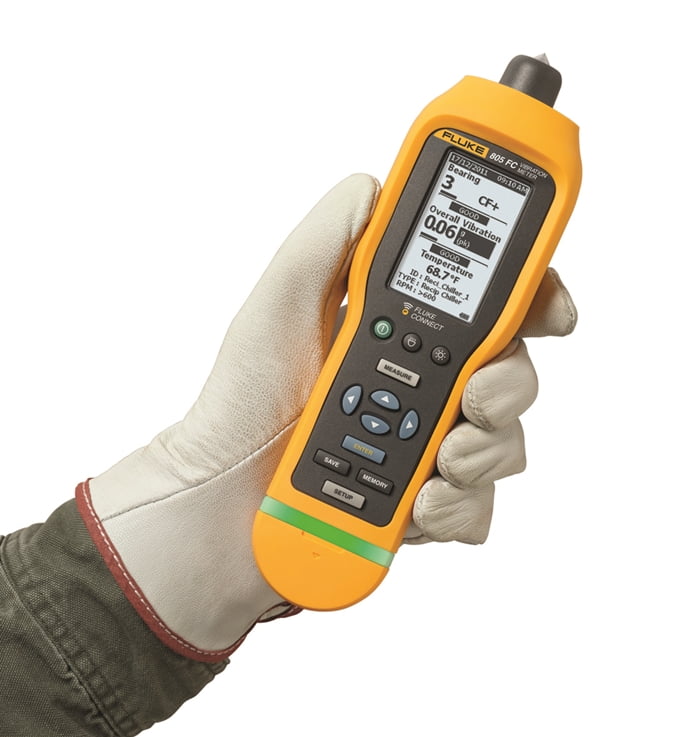

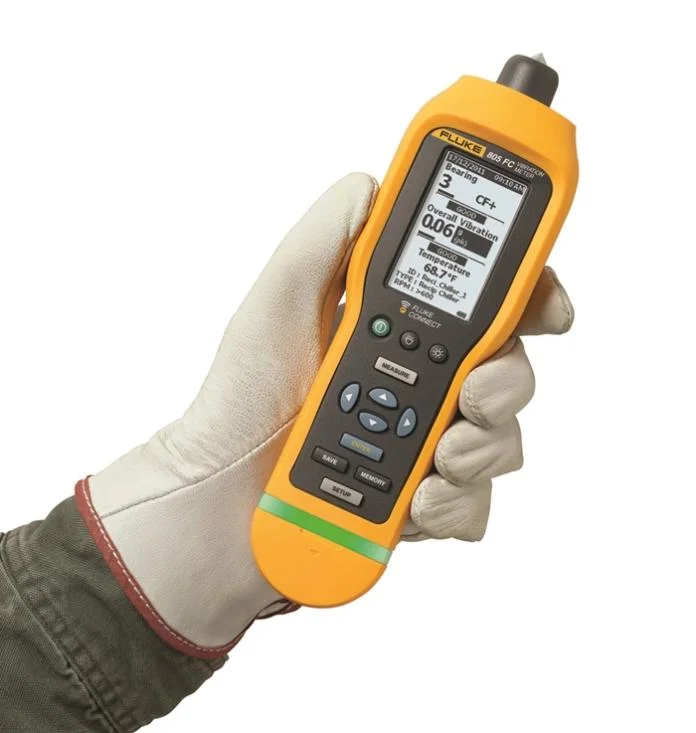

lifespan. More than half of unplanned downtime is attributed to mechanical failures. While many things can impact the life of a machine, once the first signs of failure appear, it generally has only a matter of months before failing completely. Vibration testing provides a way to determine where a machine is on the failure curve allowing maintenance teams to react as needed. The higher the overall vibration of a machine the worse the condition is. COMTEST has on offer the Fluke 805 Vibration meter that measures overall vibration, bearing vibraÂtion and temperature simultaneously.
Bearing condition is assessed automatically with use of Crest Factor Plus (CF+) and temperature is often used as a second opinion that confirms the bearing assessment based on vibrations. With Fluke Connect for the FC enabled models, or a free excel template trend plots on all available parameters are easily created. Overall vibration values are used to create trend plots that help to predict the condition of a machine and to plan maintenance. Machine condition of most common machinery can be determined instantly with alarm levels that are programmed in the product.
Users such as frontline mechanical troubleshooting teams and machine operators of high-end process facilities (petrochemical, pulp and paper, primary metals, utilities, food, product, etc.) are very specific about inconsistencies in results when using vibration screening devices. Fluke 805 promises reliable, repeatable results thanks to the innovative sensor and sensor tip design that minimizes measurement variations caused by angle or
pressure. This unique sensor force sensor design compensates for the pressure applied during measurement, and provides reliable results both for overall vibration (10 Hz to 1,000 Hz) and bearing measurements (4,000 Hz to 20,000 Hz).
The Fluke 805 Vibration Meter provides a four level severity scale (Good, Satisfactory,
Unsatisfactory and Unacceptable) for both overall vibration and bearing condition. Rather than seeing unexplained lights or numerical indications, users can easily assess the severity of the situation with the Fluke 805’s text-based alerts.
The Fluke 805 can hold up to 3500 measurements and if long term trending is required,
users can easily export data through a USB connection. No special software is needed because the product is shipped with a disk containing prebuilt Excel templates.
Contact COMTEST Tel: 010 595 1821 sales@comtest.co.za for more information on the Fluke 805 Vibration tester, technical or seminar information, demonstrations or to locate your nearest authorized Comtest Channel Partner.
