SPRAY nozzles in petrochemical applications are crucial components in various processes within the industry, including cooling, quenching, and catalyst activation. These nozzles are designed to deliver precise and efficient liquid or gas sprays to optimise performance and ensure safety in petrochemical plants.
Given the harsh environments in petrochemical facilities, spray nozzles must be made from materials resistant to corrosion and high temperatures. Stainless steel, nickel alloys, and various carbides are commonly used to ensure durability and longevity.
Monitor Engineering, sole agents in Southern Africa for Spraying Systems Co., supply various types of spray nozzles to the petrochemical industry. They are:
Full cone nozzles: These produce a wide, circular spray pattern, ideal for applications that require uniform coverage. In petrochemical operations, they are often used for cooling hot surfaces or providing uniform quenching in reactors.
Flat fan nozzles: Generating a fan-shaped spray, these nozzles are employed where a broad, flat spray is needed. They are useful for applications such as coating, where a uniform layer of liquid needs to be applied.
Hollow cone nozzles: These nozzles create a cone-shaped spray with a hollow centre and are particularly effective in processes like catalyst activation and air pollution control, where controlled droplet distribution is critical.
Atomising nozzles: These break the liquid into very fine droplets, enhancing mixing and combustion efficiency. Atomising nozzles are commonly used in processes like inhibitor injection and steam generation, where fine atomisation improves the reaction rates and efficiency.

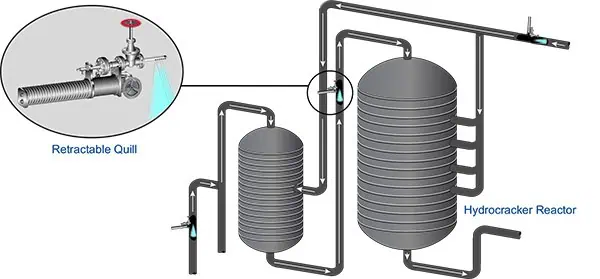

Injectors and quills: These built-to-order injectors optimise process performance and are instrumental in achieving the desired cooling, mixing, quenching, washing and chemical reaction.
Key factors for spray nozzle selection are:
Flow rate and pressure: The nozzle must be selected based on the desired flow rate and pressure requirements of the application. This ensures that the spray pattern and coverage meet process specifications.
Droplet size: The size of the droplets produced by the nozzle affects the efficiency of the process. Smaller droplets improve mixing and reaction rates, while larger droplets might be used for cooling and washing.
Chemical compatibility: The materials of construction must be compatible with the chemicals being handled to prevent degradation and ensure safe operation.
Applications in the petrochemical industry include:
Cooling and quenching: Nozzles are used to cool hot gases and liquids rapidly. For instance, after catalytic reactions, products are often cooled using spray nozzles to bring them to a manageable temperature.
Catalyst activation: In processes such as hydrocracking, spray nozzles are employed to activate catalysts by evenly distributing reactants over catalyst surfaces.
Air pollution control: Spray nozzles help in scrubbing systems to remove pollutants from exhaust gases, ensuring environmental compliance and reducing emissions.
Water wash: Crude overhead water wash in distillation columns, and fin fan water wash.
Customers are assured of Monitor Engineering’s expert assistance to model their spray operations and provide new insight into areas that could be improved. They also help them to select better nozzles, optimise injector placement within a vessel, or design and fabricate an injector to deliver the performance required, complete with testing and documentation.
For more information contact grant@monitorspray.co.za
