High Performance, Modular, Bidirectional, Regenerative Programmable DC Power System Programmable Power Testing / Battery Testing / Fuel Cell Testing / Solar Inverter Testing

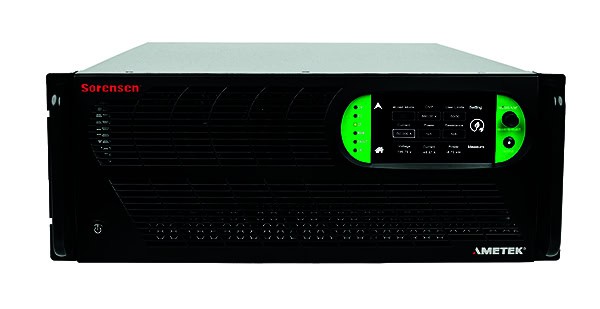

COMTEST, the local representative of AMETEK Programmable Power, is pleased to announce the new Sorensen™ Modular Intelligent-Bidirectional Energy AMplified (Mi-BEAM) Series.
Performance, Power & Safety
The Mi-BEAM Series is the newest addition to the AMETEK Programmable Power portfolio of high-power testing solutions. It is designed for testing today’s complex, high-power electronics in various applications in the automotive, energy storage, industrial, and aerospace markets. This platform covers all test needs through the product life cycle, from advance research and development (R&D) to design validation and production test requirements.
The Mi-BEAM Series features complete DC source and sink capabilities with power levels from 12 kW to 37 kW. It is fully scalable up to 1.2MW with parallel systems. The available voltage ranges of 600V, 1,500V, and 2,000VDC in a 4U rack-height chassis provide full power up to 150A within a single system.
Key Features
- Complete solution – battery test, simulation & solar array simulator software included
- Highest power density up to 37 kW in 4U rack height (9.25 kW/U)
- Fastest and cleanest power available (fastest transient response and low output ripple and noise)
- Longest manufacturer-based reliability guarantee: 5-year warranty
- Parallel system power up to 1.2 MW
- Output voltage up to 2,000 V
- Bidirectional output current up to ±150 A, up to ±4,800 A in parallel
- True extended wide-range auto-ranging output
- Regenerative to 95%
- Colour touch panel user interface
- Seamless transition between source and sink
- Built-in islanding detection
Applications
- Battery simulation & Battery testing (charge/discharge)
- Electric powertrain testing
- Fuel cell testing
- Solar inverter testing
Contact COMTEST for further information on the Mi-BEAM Series and how AMETEK’s solutions can assist, on 010 595 1821, sales@comtest.co.za or www.comtest.co.za
