Home » Industry News » Automation & Process Control News » Fluke 376 FC True-RMS Clamp Meter with iFlex

Fluke 376 FC True-RMS Clamp Meter with iFlex

Fluke, locally represented by COMTEST, a global technology leader in the manufacture of compact, professional electronic test and measurement tools and software, has on offer the  Fluke 376 FC True-RMS Clamp Meter with iFlex –  the most advanced troubleshooting tool for industrial and commercial electricians. The 376FC is part of the Fluke Connect family of wireless test tools that enables you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.

Find the cause of difficult problems.

The 376 FC clamp meter uses an integrated low-pass filter to accurately measure non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and captures the motor starting current exactly as the circuit protection sees it.

Measures:

  • Voltage to 1000 V AC or DC
  • Resistance to 60 kΩ with continuity detection
  • Min, max, average, and inrush recording to capture variations automatically
  • 500 mV DC measurement range to interface with other accessories
  • 1000 μF capacitance measurement
  • Work safely and conveniently
  • The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.

The included 18-inch or 36-inch iFlex flexible current probe provides easier access to large conductors in tight spaces. The flexible probe:

  • Expands the measurement range to 2500 A AC
  • Allows frequency measurement to 500 Hz with body jaw and iFlex

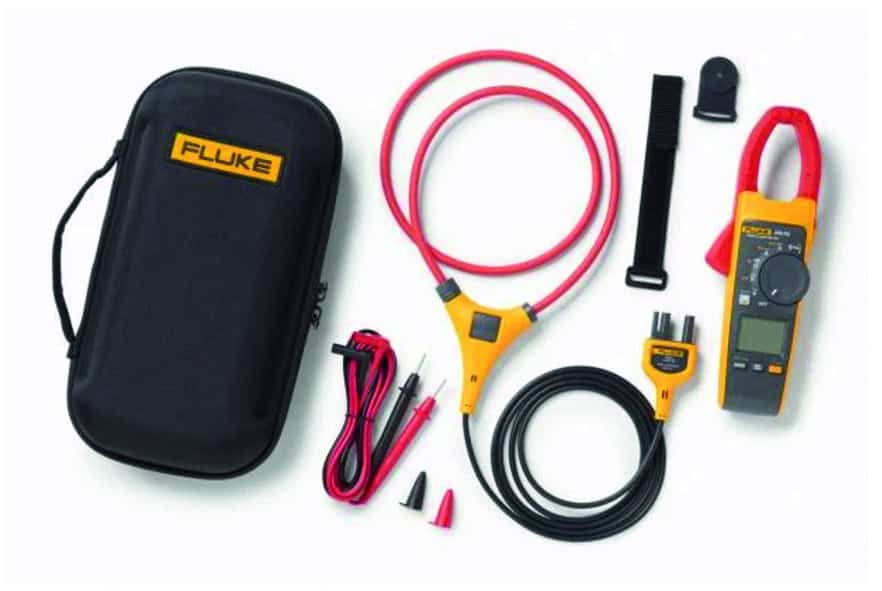

What’s in the box:

Fluke 376 FC KIT comprises: True-RMS Clamp Meter with iFlex, 18-inch or 36-inch iFlex® Flexible Current Probe, TPAK magnetic hanging strap, TL75 Test Leads, Two AA batteries (Installed) and Soft carrying case.
  • Fluke 376 FC True-RMS Clamp Meter
  • 18-inch or 36-inch iFlex® Flexible Current Probe
  • TPAK magnetic hanging strap
  • TL75 Test Leads
  • Two AA batteries (Installed)
  • Soft carrying case

Contact COMTEST on + 010 595 1821, sales@comtest.co.za or www.comtest.co.za for more information on the Fluke 376 FC True-RMS Clamp Meter with iFlex, technical or seminar information, demonstrations, or locating your nearest Authorised Comtest Channel Partner.

FACEBOOK: bit.ly/3iuk4cg
YOUTUBE: bit.ly/2V4nc6j
LINKEDIN:
bit.ly/3rpTu86
