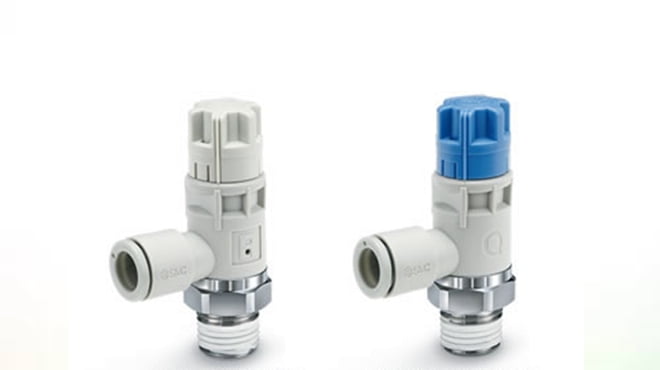

The recent introduction of SMC’s new flow and pressure valves in the AS-R and AS-Q series respectively, reduce internal air consumption by up to 25% when using the AS-R pressure valve and an AS-Q flow valve on their cylinders.
Product Manager for SMC Pneumatics, Brian Abbott explains just some of the benefits of using the AS-R and AS-Q series in applications: “Among the many tangible benefits, using these valves helps to shorten the response time of the return stroke and harmonises stroke movements to prevent a harsh jerky start,”
“In pressing applications, these valves enable a rapid supply of compressed air at the end of the stroke, and the valve bodies and plug-and-socket connections can rotate 360° to ensure fast and easy installation.”
Energy savings in the compressed air system
SMC’s range of pressure and flow valves includes six AS-R and five AS-Q models. “SMC supplies these in R1/8, R1/4, R3/8 and R1/2 connection sizes and for hose diameters ranging from 6 to 12mm,” says Abbott.
“Customers are able to choose between the new AS-R series with its fixed 2 bar supply pressure and the older ASR valves with fixed or variable set pressures depending on the application where pressures are adjusted manually using a handle with a three-part scale”.
The pressure valve and flow valve is mounted together on cylinders. The AS-Q flow valve is installed on the working stroke side and the AS-R pressure valve on the return stroke side.
“The two valve series have similar designs: the pressure valves consist of regulator, with a check valve and a throttle check valve.”
“The flow valves in the AS-Q series contain a quick supply valve, an exhaust valve and a throttle check valve”.
The bigger the cylinder, the greater the savings
AS-R/AS-Q valves are recommended for cylinders with a diameter of 32mm up to 125mm bore, and an inlet pressure of at least 3 bar; “What’s truly of value to customers is that savings actually increase with bigger cylinders or higher air consumption levels and larger pressure differences between the working and return strokes.”
A wide range of uses
SMC’s new energy-saving compressed air valves enable machine manufacturers to make their products more energy-efficient without making any fundamental design changes. Abbott concludes saying: “Manufacturers who incorporate this technology can enjoy a competitive edge which in-turn translates into higher revenues.”
